CNC Specification

Number of Axes Supported
3~5 axes

Hardware Specifications

CPU
ARM11

RAM
128M

Flash
256M

Monitor Dimension
7

Monitor Resolution
800*480 color LCD

I/O
Standard：32I/O32

Performance
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

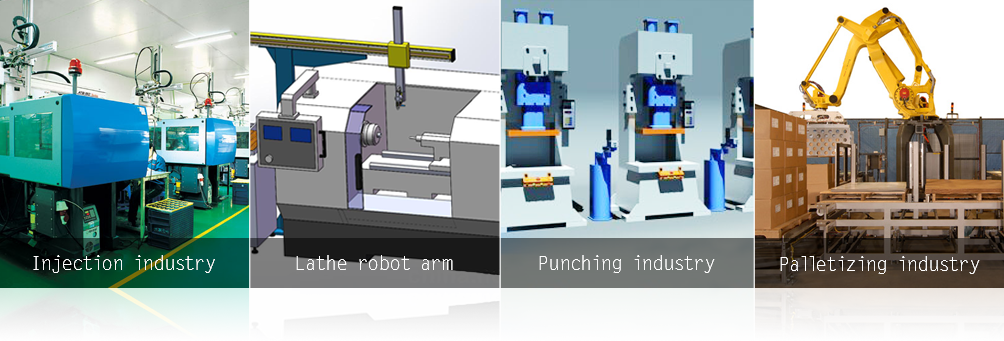

Applicable Industries

Lath, Magnetic tile, Injection molding, etc

Programming Language

Teach-in programming

Embedded Program Function

Stacking, Sampling, Defects placement, Return to standby point, Rapid move to placement point

Material Storage Function

Mold
6000 groups

Main Program
200-step-sequence

Subroutine
100 subroutines with no limit on step sequence

Intelligent Management Function

Security password set in terms of five permissions

QC Function

Quality management with samplings picked and placed periodically

Maintenance Function

User-defined maintenance schedule

Fault Detection Function

Auto detection of faults, with fault details recorded

PLC Function

Integration of robot motion and PLC

Backup & Update Function

One-click backup & update Via USB flash drive
